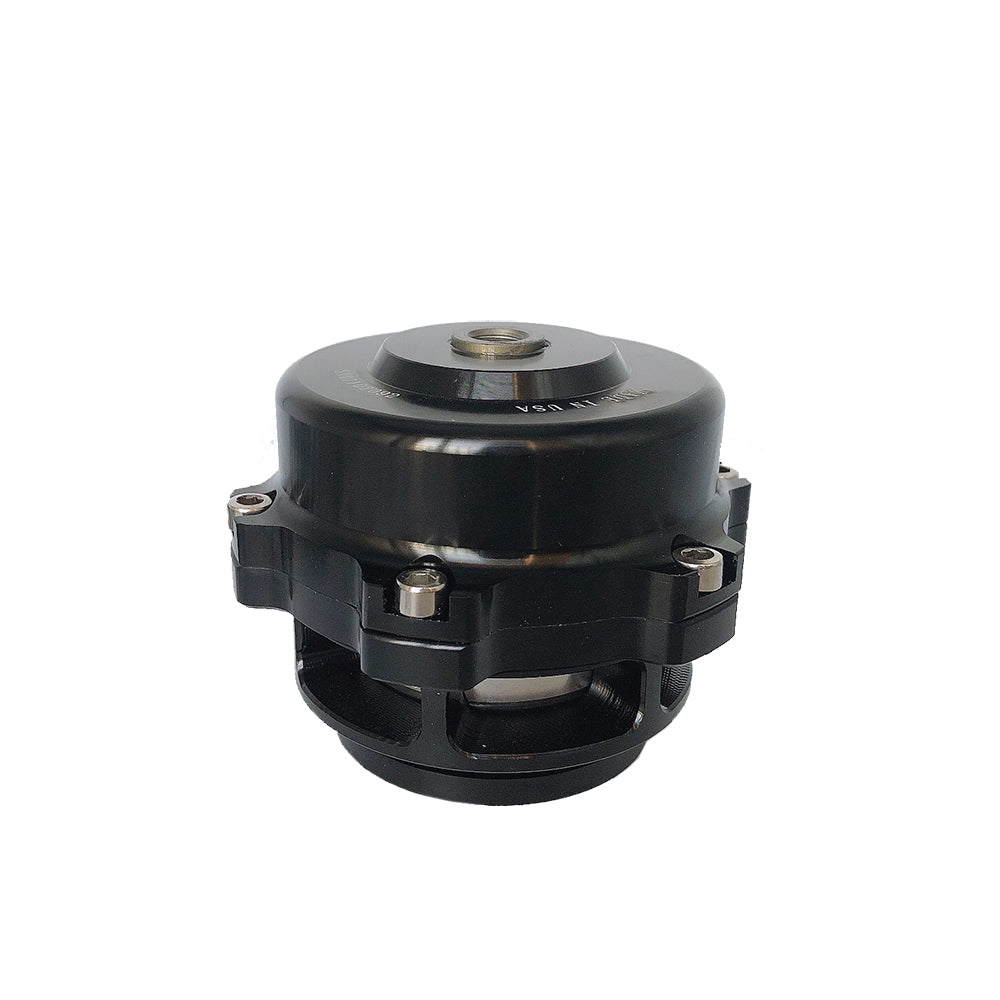

Black Universal 50mm Blow Off Valve BOV Q Typer BV50 6 PSI+18PSI Springs

The Q bolts up to any standard TiAL flange, no re-welding. This is the highest flowing BOV on the market. It's offered with a variety of springs for different vacuum levels and a special spring specifically for supercharged vehicles.

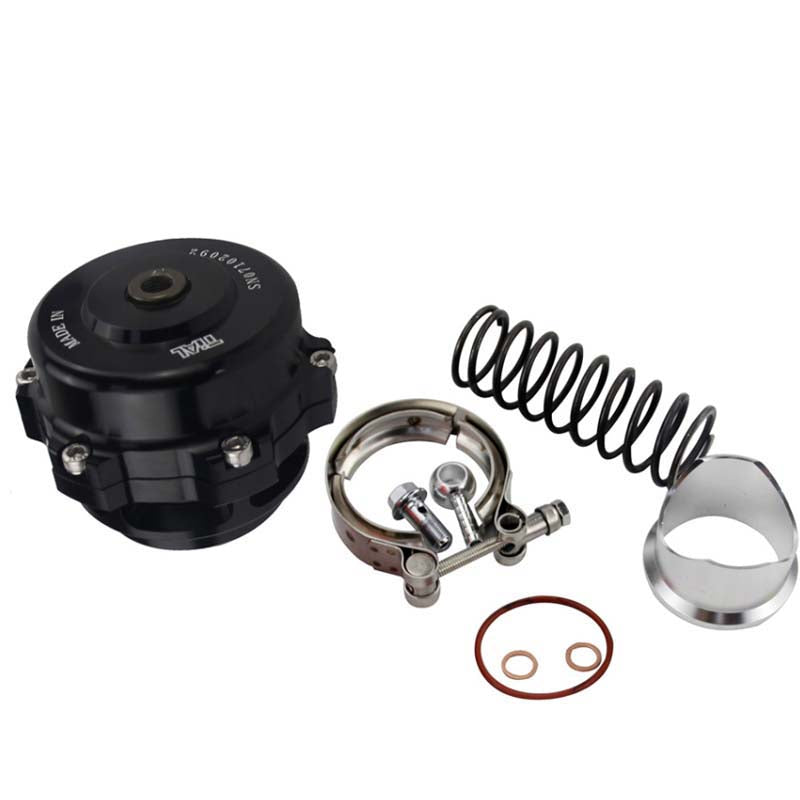

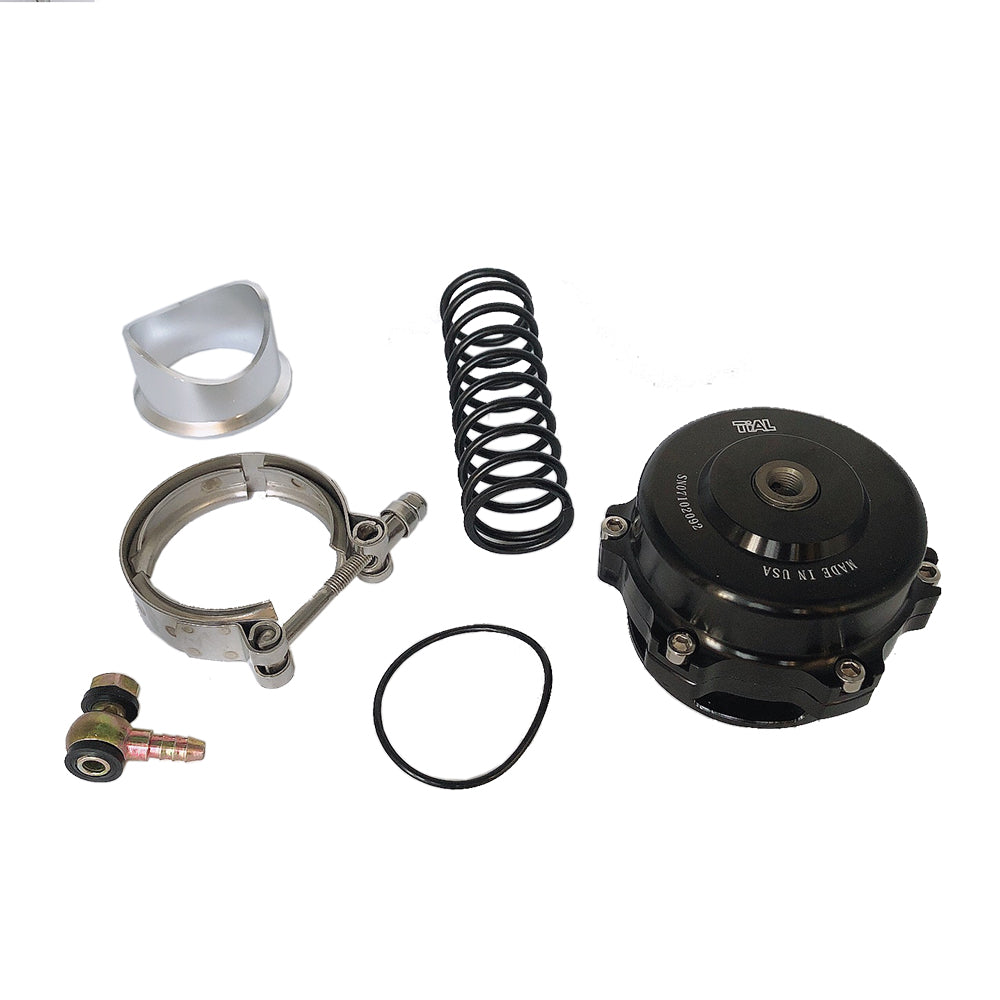

What's in the box

• Q Assembly
• Vband Clamp
• Vband Weld Flange
• Air Fitting
• High-Pressure O-ring

Specifications

• For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.). The body and all internal components are CNC-machined from 6061 aluminium alloy. It features a large 1.98 inch (50.5mm) valve.


• The V-Band design aluminium mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long-lasting, corrosion-free appearance.


• The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.


• The Blow Off Valve also comes with our own machined aluminium banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.


• An aluminium or mild steel weld base mounting flange is furnished with each unit. Stainless Steel is available at an additional cost. The use of 6061 aluminium allows the housing to be anodized with a selection of colours.


• Through countless hours of R&D, we were able to make the same size valve flow a staggering 60% more than the original design - that means 60% more air is blown off per cycle! This is the highest flowing BOV on the market.
