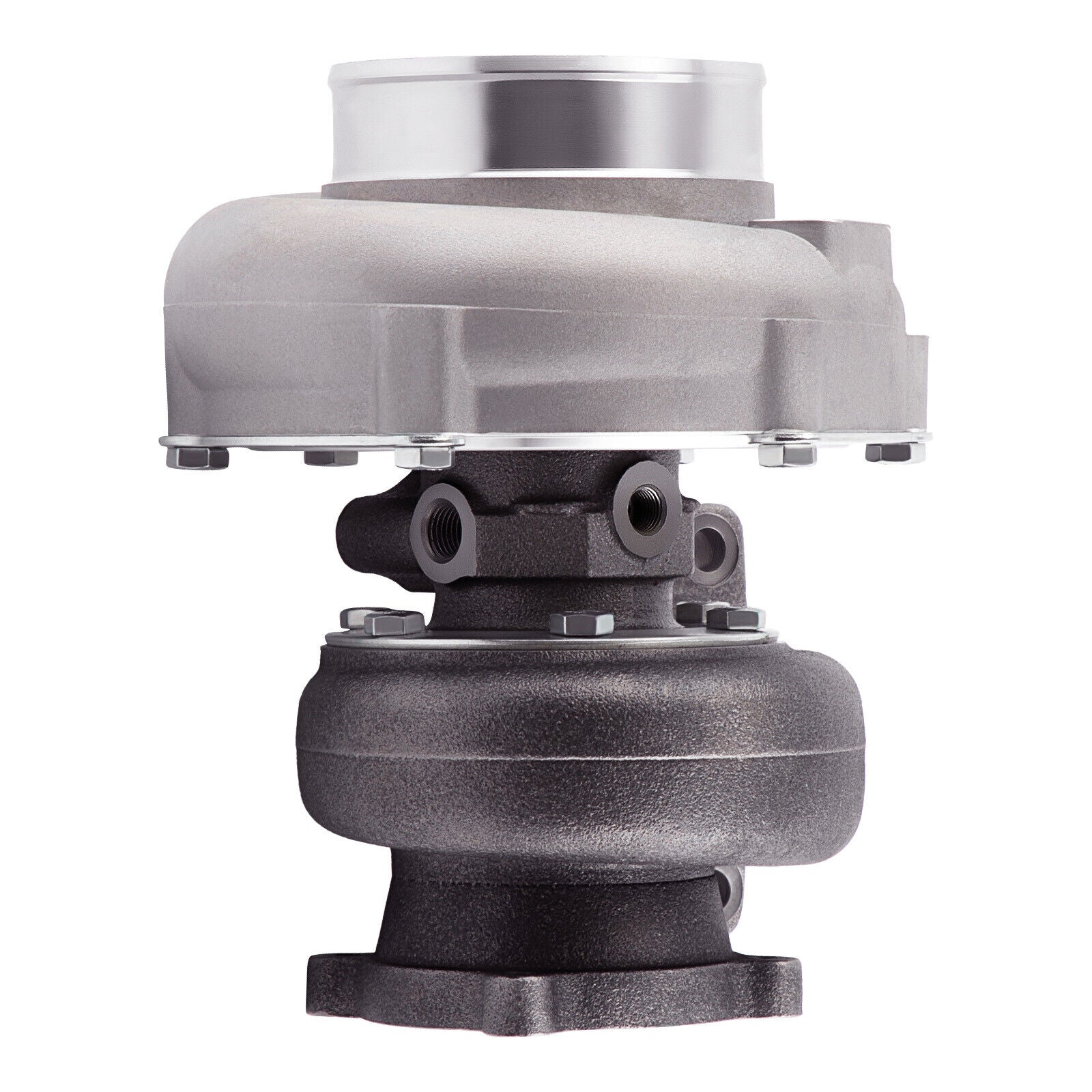

GT35 GT3582 GT3540 T3 AR.70 AR.63 FLOAT BEARING TURBO CHARGER 600HP

Measurements

Turbine Side:

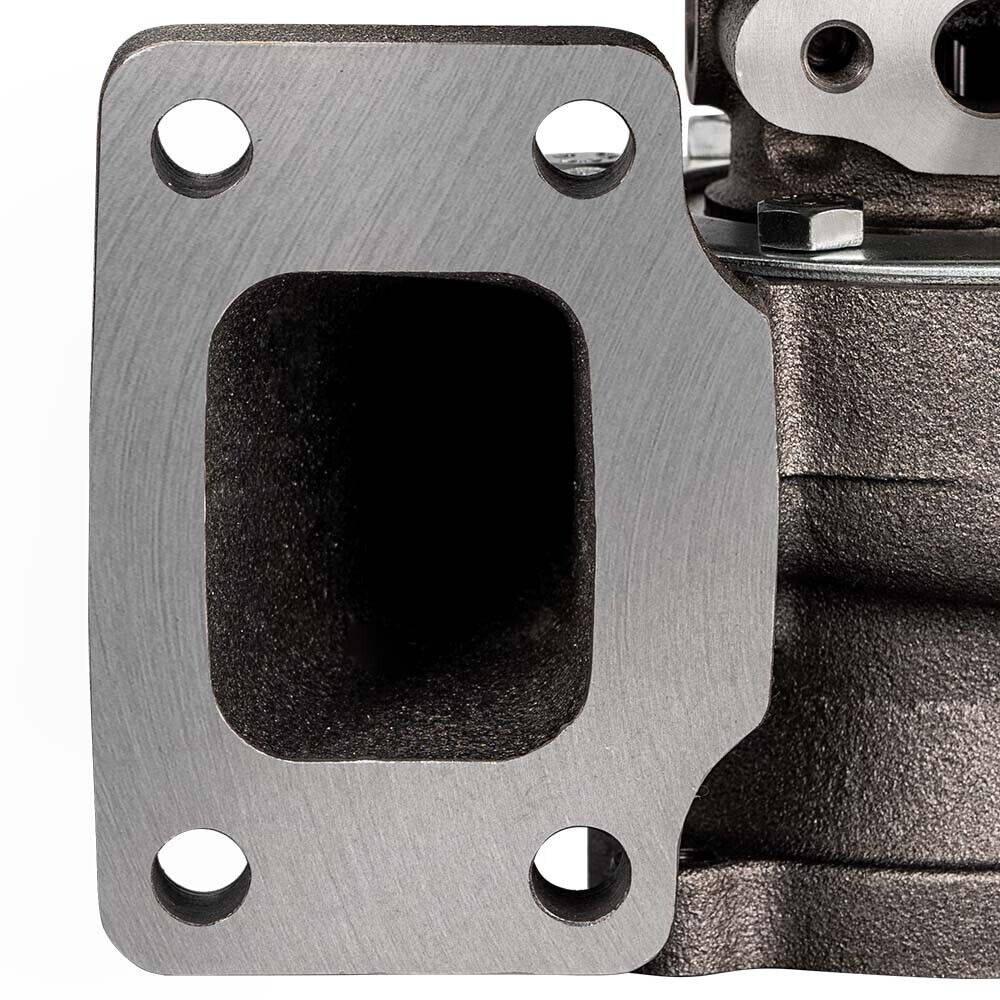

Exhaust Inlet Flange: T3 Flange

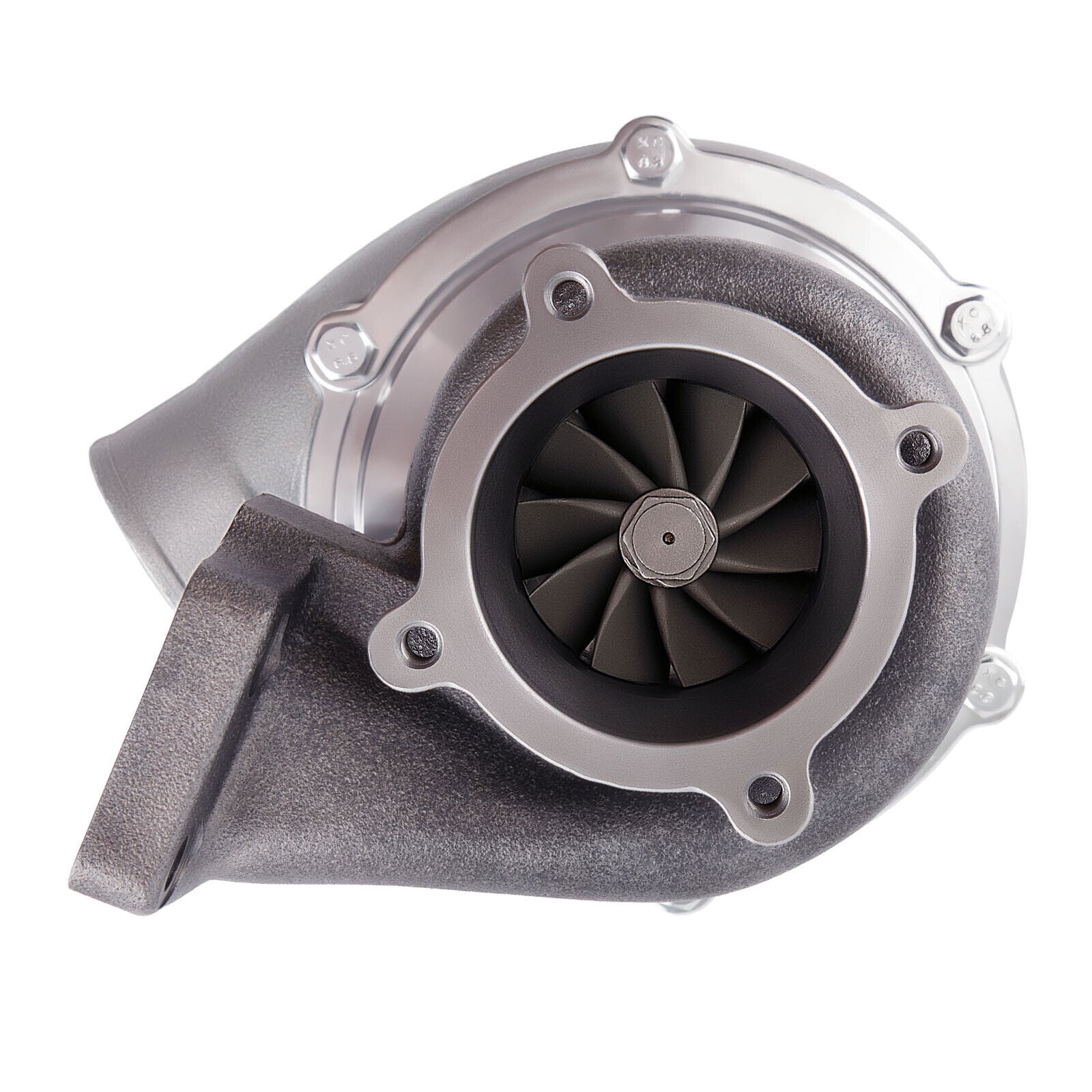

Exhaust Outlet Flange: 4-Bolt
Turbine Trim: 84.2
Turbine A/R: 0.63
Turbine Inducer Diameter: 68mm
Turbine Exducer Diameter: 62.4mm

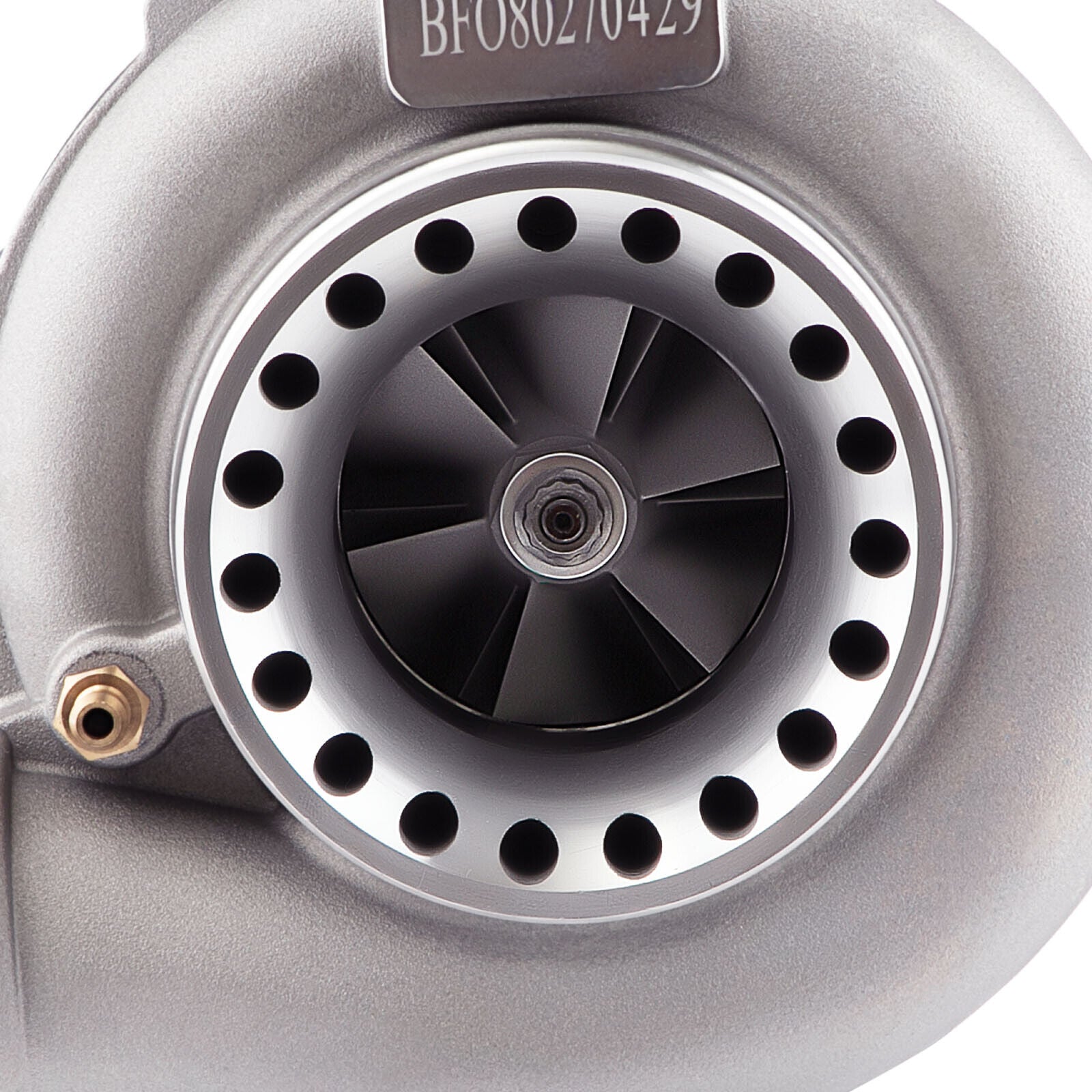

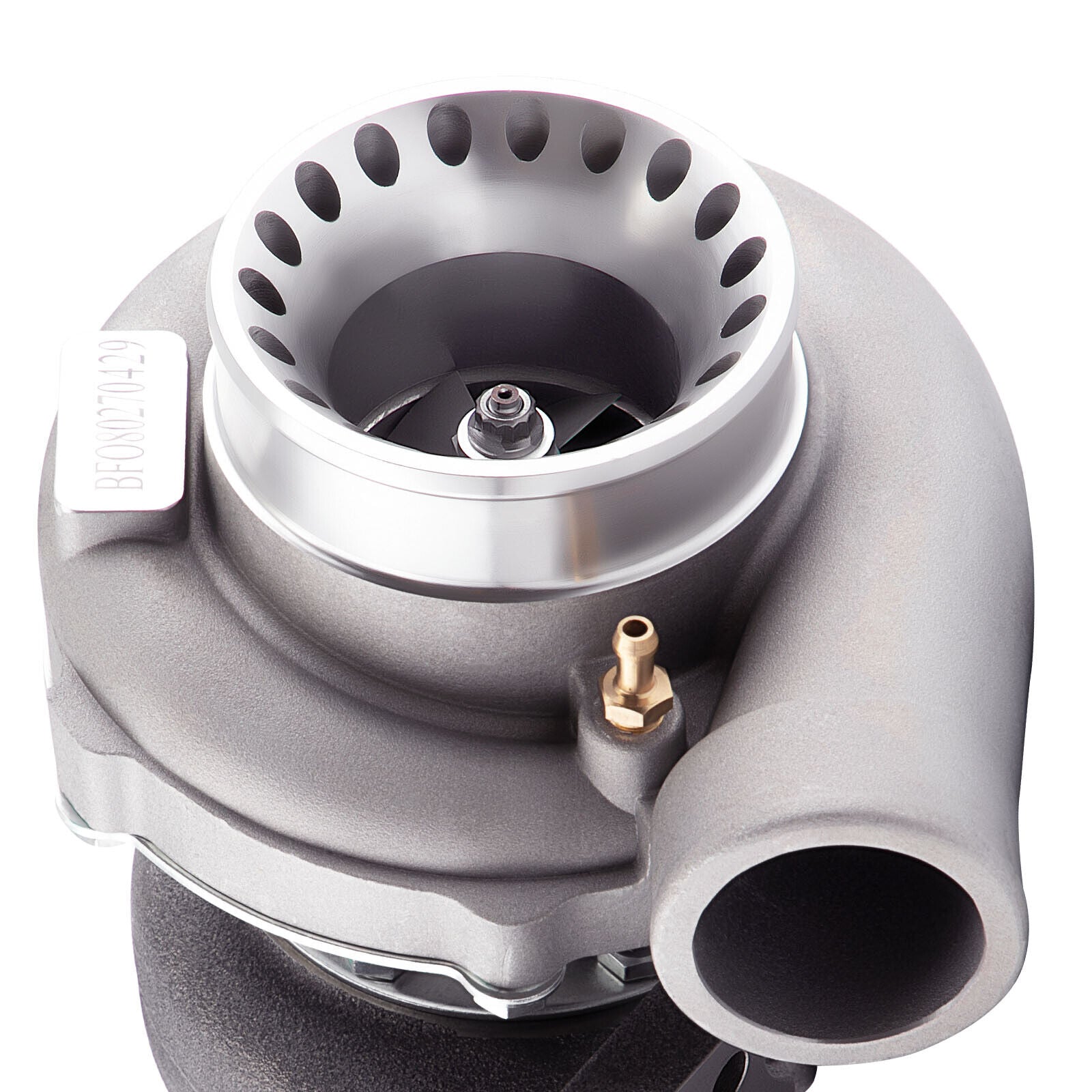

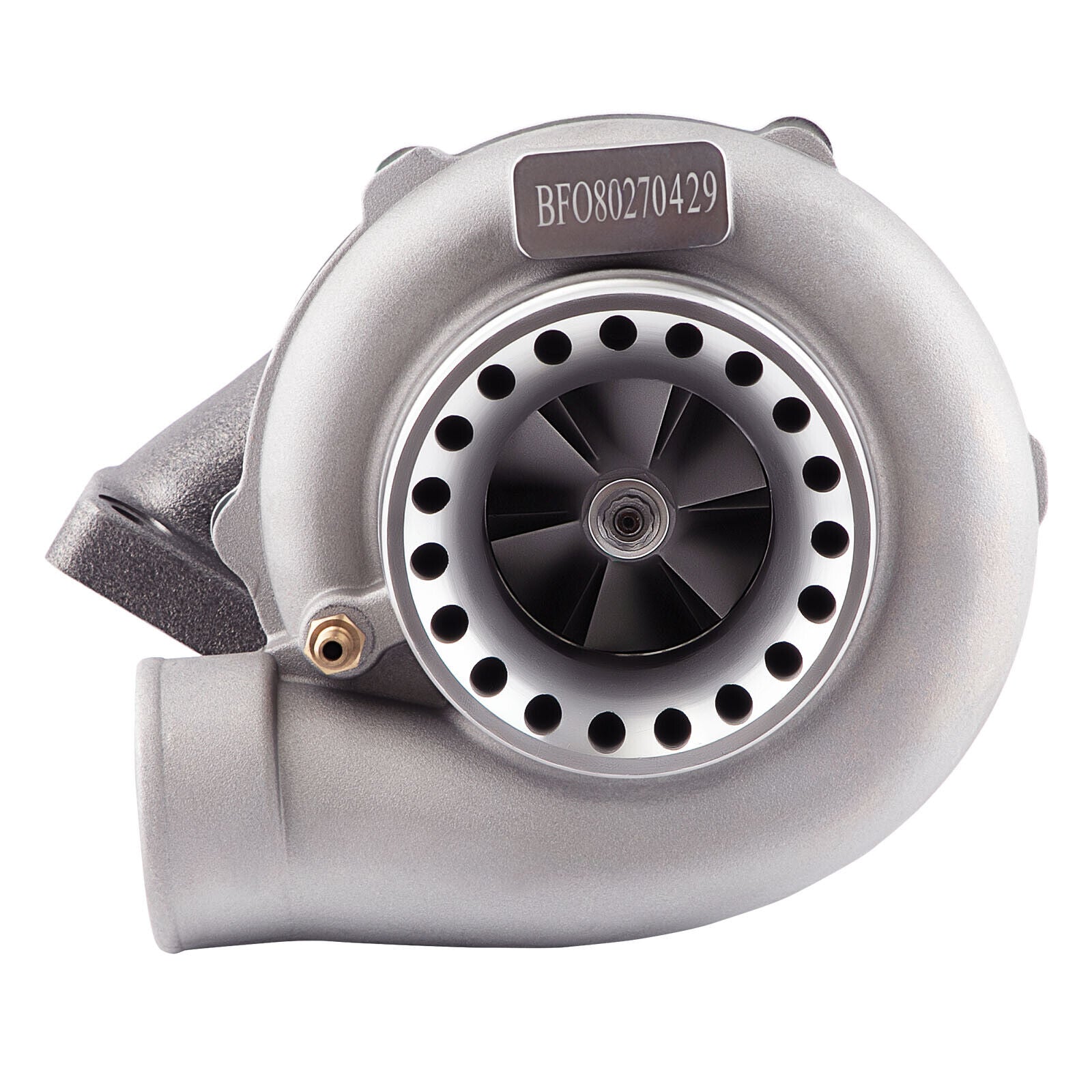

Compressor Side:
Compressor Trim: 56.9
Compressor A/R: 0.7
Compressor Inducer Diameter: 61.5mm
Compressor Exducer Diameter: 81.5mm
Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Floating/Journal Bearing
Thrust bearing: 270 degree
Cooling Type: Water + Oil Cooling
Horse Power: Up to 600HP
Turbo Type: Individual
Wastegate: W/O Wastegate

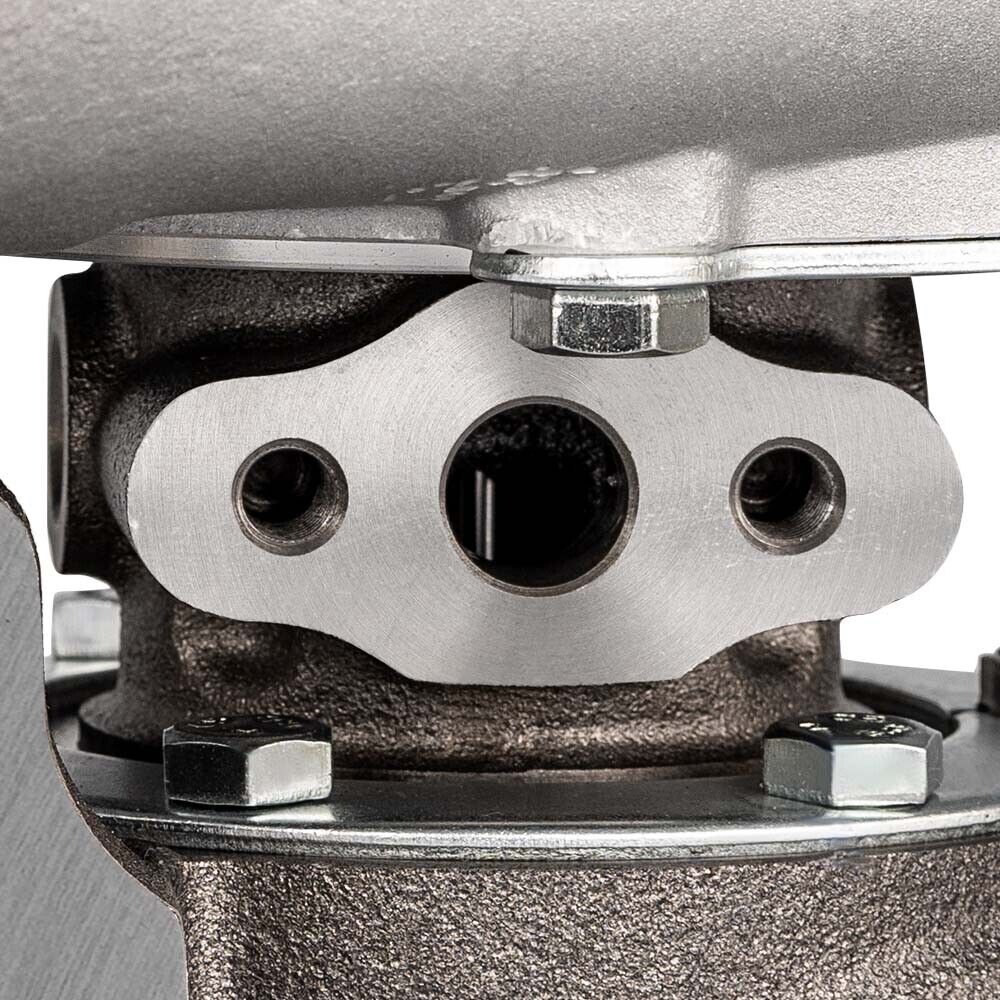

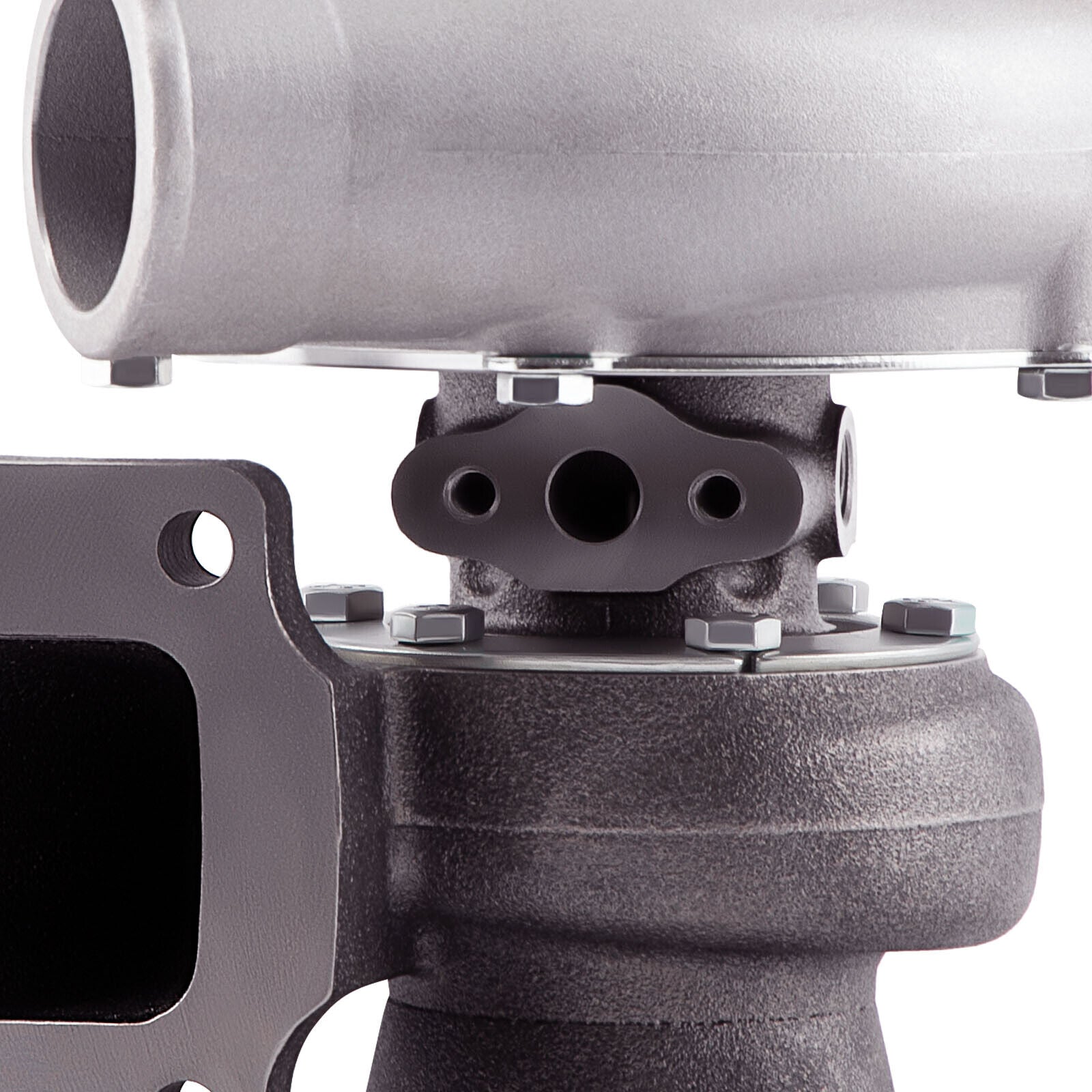

Oil Inlet: M10*7/16-24
Oil Outlet: M14.1 & 2*M8*1.25
Water: M14*1.5
Maximum PSI: 22
Condition: 100% Brand New
Accessories: You will get exactly as shown as picture above

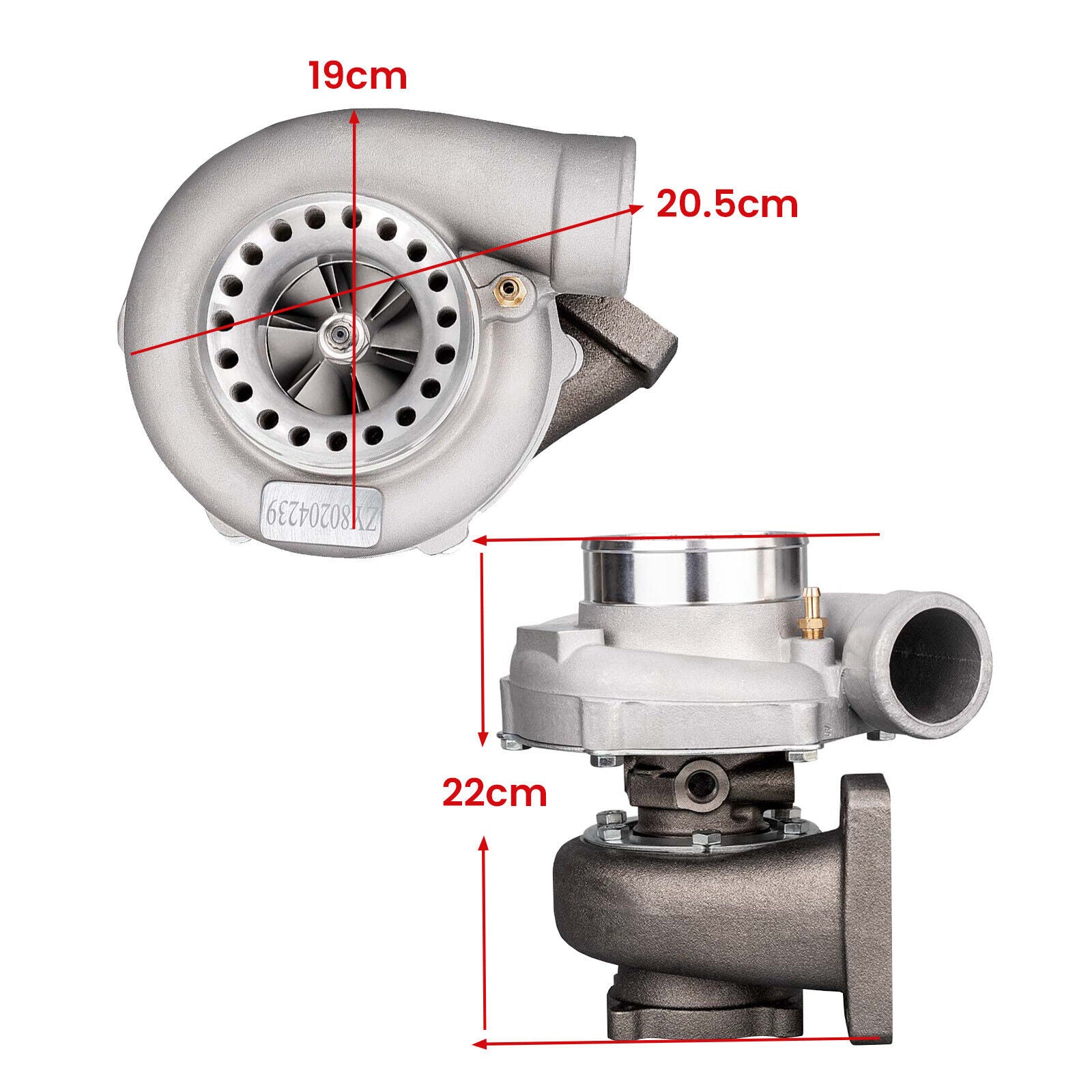

Pakage Size: 26 x 25 x 23 cm
Pakage Weight: 8350g

Product Material:
1. Turbine housing : iron QT450-10 shell
2. Steel Turbine Wheel: K418 alloy
3. Compressor housing: ZL104 aluminum
4. compressor wheel/blades: Cast aluminium

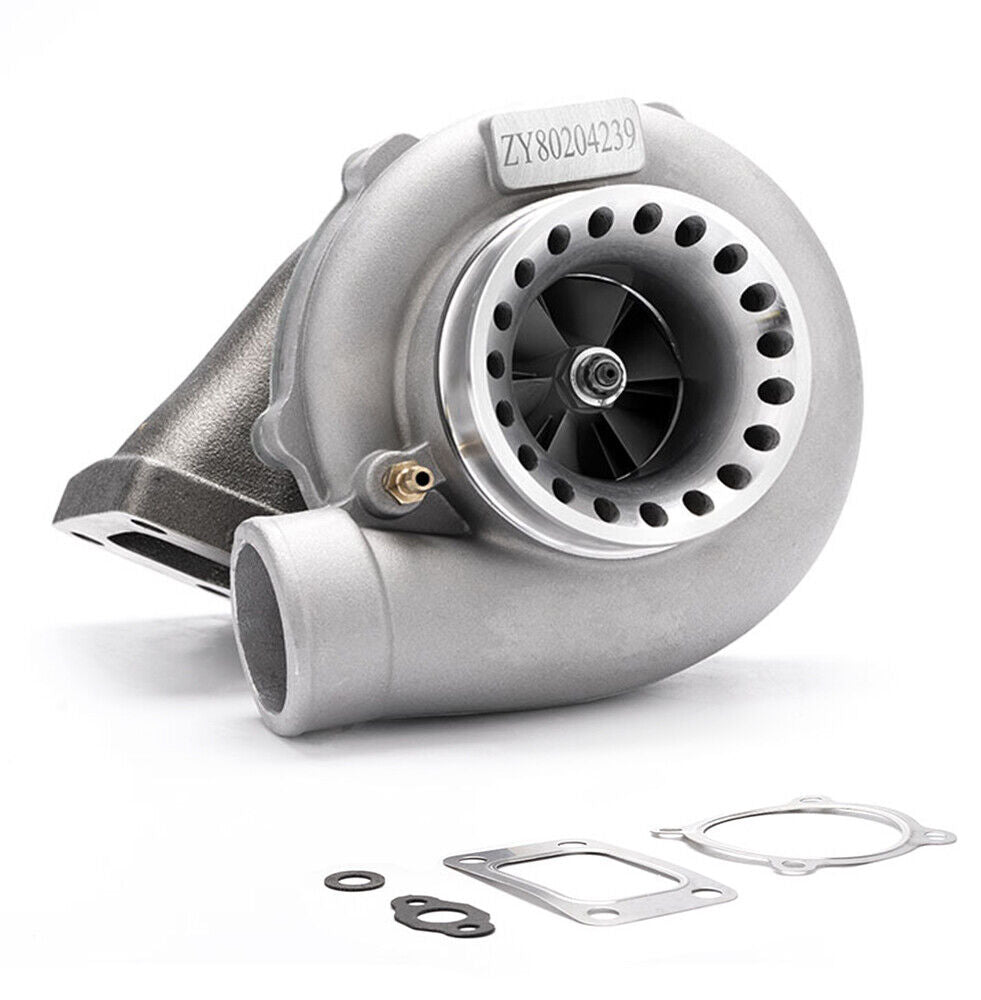

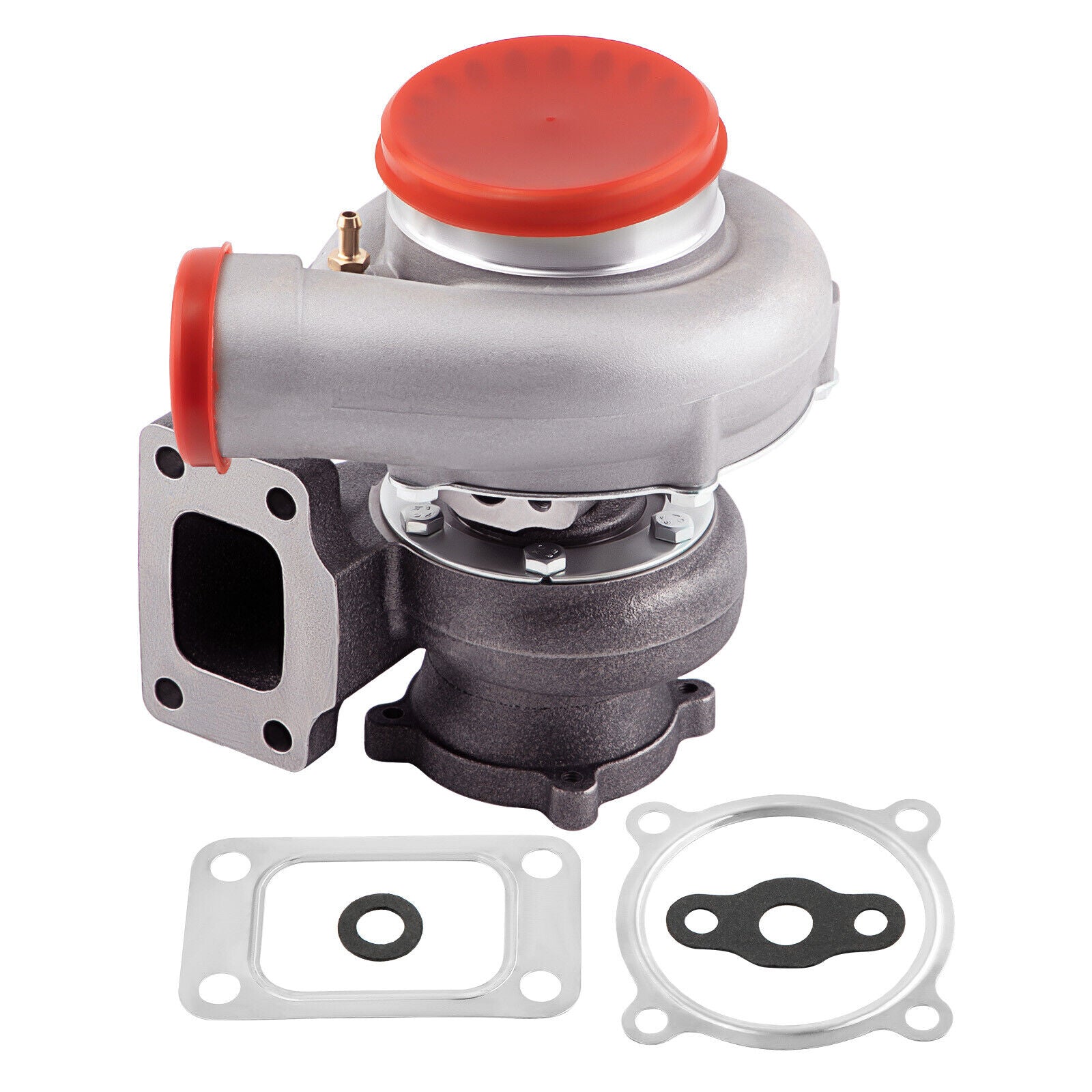

Package includes

1 x Turbocharger
2 x Flange gaskets
2 x Oil feed/drain gaskets
